Handheld Diameter Measuring Machine Laser Scan Micrometer Gauge

Name: Handheld Diameter Measuring Machine Laser Scan Micrometer Gauge
Brand: Screate DALA
Price: 1 USD

Buy cheap Handheld Diameter Measuring Machine Laser Scan Micrometer Gauge product

Brand Name : Screate DALA

Model Number : H1

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, etc.

Delivery Time : 7 - 15 working Days

Packaging Details : standard packing, as customer demands

Measurement data : diameter

Application : Fine Wire

Measurement : 0.015~1mm

Repeatability : ±0.08um

Accuracy : ±（0.00015+0.03%*D)mm

Size : 208*53*57.5

Working power source : 9V ±10% 12VA

Calibration method : Automatic calibration

Contact Now

Small Size

DALA handheld laser micrometer operates based on the laser diffraction principle and is designed without any internal motors, providing exceptional accuracy and long-lasting performance.It is smart size ,and applicable to conduct measurement at limited space .

The display remains clear even in bright lighting conditions.

Size : 208*53*57.5mm, Weight :557g, it is applicable to on site samping check.

Handheld Diameter Measuring Machine Laser Scan Micrometer Gauge

Technical Specification

Model	H1
Axis	1-axis
Measurement data	diameter
Measurement range	0.015~1mm
Repeatability	±0.08um
Accuracy	±(0.00015+0.03%*D)mm
Size	2085357.5mm
Working power source	9V ±10% 12VA
Working temperature	0℃~55℃
Storage temperature	0℃~60℃
Relative humidity	Maximum 85%, no condensation
Display	LCD HD display
Data collection and analysis	Support
Data storage & exported	Support
Power bank charging	Support
Battery capacity	About 10 hours
Calibration method	Automatic calibration

Handheld Diameter Measuring Machine Laser Scan Micrometer Gauge

Product Tags:

Handheld Diameter Measuring Machine

Diameter Measuring Machine Gauge

laser scan micrometer Gauge

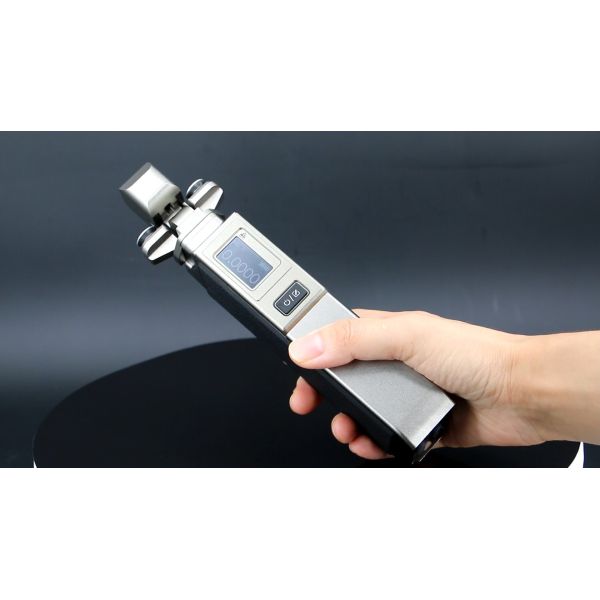

Handheld Diameter Measuring Machine Laser Scan Micrometer Gauge Images
